Use JConsole with ActiveMQ for a quick JMS test client

As I was working with OpenESB to try an integrate it with ActiveMQ I stumbled across a quick and easy way work with ActiveMQ. My needs were basic and I just wanted to be able to browse, add and remove messages from a set of queues. I knew that ActiveMQ has JMX support so I wondered if my basic needs could be met using JConsole. Sure enough they were. Here's what I did:

First, I configured ActiveMQ with the queues I needed and started the server (console output below).

The JMX service connection uri is part of the ActiveMQ startup output (see the last line beginning with INFO ManagementContext). After the server is running you then can start up JConsole by typing jconsole at a terminal/command prompt. The ActiveMQ JMX agent should be displayed in the local tab of the JConsole: Connect to Agent dialog box. If not, you can enter in the management context uri (e.g. service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmi)

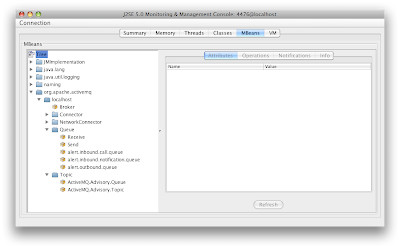

After connecting you will be presented with a Summary screen showing a snapshot of ActiveMQ. From here simply click on the MBeans tab and expand the org.apache.activemq node to see the queues and topics configured in ActiveMQ.

Ok, now we're able perform as many MBean operations that are available. When you're unit testing a JMS service (or application) the first thing you typically do is place a message on a queue. You're probably saying "well duh?" and that's what I'd say. The funny thing is that I find myself spending more time googling for a tool or writing/modifying sample test code to do this simple task. You'll be amazed at how easy it is through jconsole to place a text message on a queue. Again, select the queue you want to put a message on and then on the Operations tab in jconsole and scroll down to the operation sendTextMessage. Fill in the parameter with some text and click the sendTextMessage button.

You should see a dialog box pop up with the operation return and a message ID. Congratulations you just put a text message on a queue. You can now experiment with some of the operations like browse, purge, etc. There you have it...a simply easy to use JMS test client.

It's very easy to find the queues and topics in the MBeans tree with a stand-alone instance of ActiveMQ. However, it gets very difficult to even find the ActiveMQ node when you attach to an application server (e.g. Geronimo) that comes bundled with ActiveMQ. I don't have a good answer for that yet.

Happy messaging :)

Saturday, January 5, 2008

It's been a long time!

Just a quick post to let you know that this blog isn't dead. I know, it has been a long time since my last post. The truth is that I've been involved with a major SOA implementation (using BEA tools) since September 2007. This project is taking up most of my time and unfortunately my blog is feeling the affects :). I hope to get back in the lab soon however, in the meantime I'll be making some random SOA related posts that I hope you'll find useful.

Oh, btw...Chariot Solutions is hosting its annual Emerging Technologies conference in March ( This year there will be an SOA track along with various others. Take a look and hope to see you there!
